Technical Features
Approvals: UL, CUL,FM
Conforms to UL 789 & ULC/ORD-C789 & FM 1110
Adjustable buried length: 570mm to 1500mm

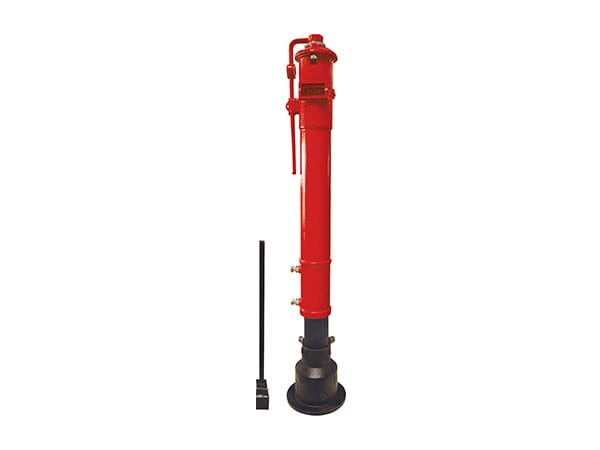

Used to identify the position of buried Gate Valves from 4″ to 12″
Operation Manual
Remove the indicator cover
Adjust the length of the connecting rod according to buried depth and cutoff the excessive part
Connect the indicator post and gate valve which is in the closed positionAdjust the indicator to the position of “SHUT”
Tighten the bolts between the flange of theindicator post and post flange of gate valveInstall the indicator cover
